Plan 405154FDC: A 1,039-Square-Foot Three-Bedroom Barndominium with Screened Porch and Two-Story Vaulted Living Core

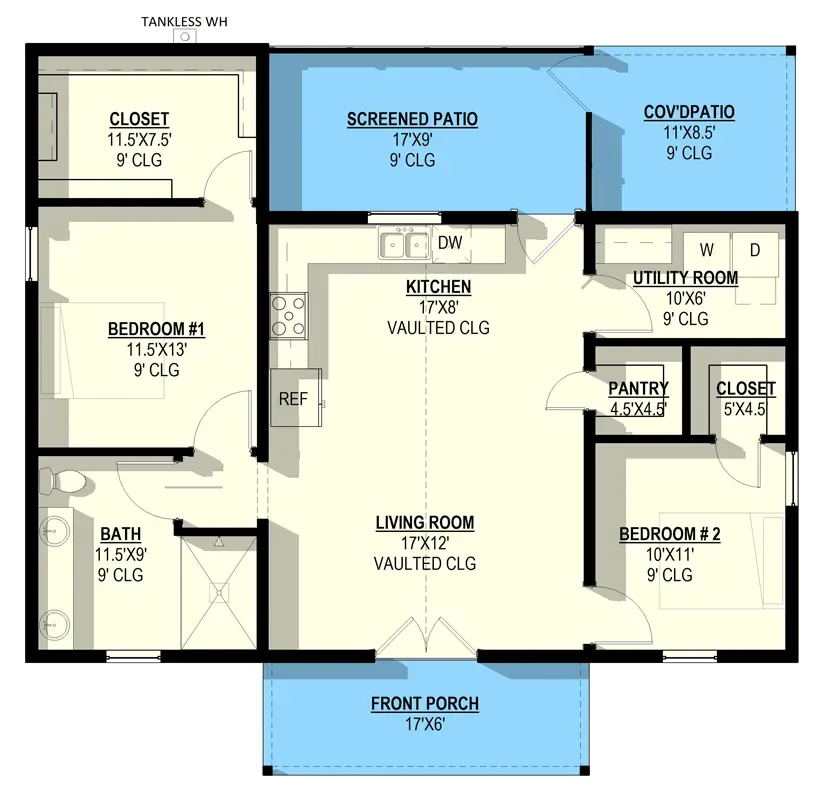

Floor Plan — The Main-Level Read

Main Level — Master, Kitchen, Living, Screened Porch

The main level reads as three programmatic bands running along the short axis. The northern band is the sleeping wing — master suite at the northwest corner with its oversized walk-in closet, the second bedroom at the southeast corner, and the main-level bathroom between them. The middle band is the great room — 17-by-12 living, 17-by-8 kitchen, both under the same two-story vault. The southern band is the outdoor sequence — front porch leading to the entry, screened patio (17 by 9 feet) and covered patio (11 by 8.5 feet) extending the living room out into the landscape. The footprint reads as wider than it is tall, which is the right proportion for a barndo. A tall narrow barndo always looks pinched; a wide low one carries the agricultural identity correctly.

The service core is small but disciplined. A 10-by-6 utility room with washer and dryer hookups handles laundry and the back-entry mudroom function together. A 4.5-by-4.5 walk-in pantry sits next to it. A 5-by-4.5 hall closet picks up shoes, jackets, and the standard daily clutter that would otherwise spill into the living room. Three storage moves clustered into one acoustic block — that's the small-footprint discipline that separates an architect-drawn plan from a Pinterest sketch.

One callout the source listing makes clear and I want to surface here: the upper level is not shown in the floor plan image set the marketplace ships, but Architectural Designs lists this as a two-story plan with three bedrooms and two-and-a-half bathrooms total. The math forces the upper level to carry the third bedroom and the half bath at minimum, and most likely the full second bath as well — leaving the main-level bath I just described as the secondary-bedroom and guest bath, not the master bath. If you're buying this plan, request the second-floor PDF from Architectural Designs before committing; the spatial story is incomplete without it.

The Two-Story Vaulted Living-and-Kitchen Core

The 17-by-12 living room and the 17-by-8 kitchen share the same vault — a single continuous social volume running 17 feet wide and roughly 25 feet deep, with the ceiling opening into the upper-level walkway above. This is the plan's signature room. The vault is what the Architectural Designs listing calls a "Two Story Great Room," and it's the architectural move that justifies the small footprint. The volume reads as roughly double the floor area; a 200-square-foot great room with an 18-foot ceiling feels closer to a 400-square-foot great room with a flat 9-foot ceiling. For Hudson Valley clients who want the agrarian-barn feel without the 3,000-square-foot heating bill, this is the trade I recommend.

The kitchen-to-living relationship is one continuous L. The kitchen runs along the south wall of the great room with the walk-in pantry tucked behind it; the living room occupies the eastern half of the same volume; and the screened patio opens off the southeast corner. The cook stays in the social conversation. The dining function isn't separately drawn — at this footprint, dining is a small table at the kitchen end of the great room or, in warmer months, the screened patio itself. Don't try to squeeze a formal dining table into the plan; it fights the volume. Use the dining-on-the-screened-porch strategy from May through October and accept that the indoor dining is a 4-top counter or a 6-top inset table inside the kitchen footprint.

Three Outdoor Rooms in Series — Porch, Screened, Covered

The plan delivers three discrete outdoor rooms, each with a different program. The front porch faces the entry and reads as the welcome-and-arrival room — shallow, columned, traditionally proportioned, the room a guest steps onto before being let inside. The 17-by-9 screened patio off the kitchen end of the great room is the bug-protected dining room from May through October — deep enough at 9 feet for a 6-person dining table with a pair of chairs at each long side and one at each end. The 11-by-8.5 covered patio extending from the screened patio is the grilling-and-overflow room, open on three sides, suited to a Weber Genesis or Big Green Egg plus a small prep counter and a pair of Adirondack chairs.

The sequence (porch → great room → screened → covered → yard) is the plan's most generous gesture. At 1,039 sq ft of heated area, the indoor space alone is modest. Add the three outdoor rooms, and the usable warm-weather living area roughly doubles. For Hudson Valley sites — Cold Spring riverside parcels, Rhinebeck farm acreage, Kingston rural lots — this matters. Six months of the Beacon-to-Hudson summer is genuinely porch weather, and a plan that gives you 380-plus square feet of covered outdoor area is a plan that lives larger than its heated footprint.

Specify the screened patio as a proper screened porch with full-perimeter Phantom or Larson retractable screens, not the stapled-fiberglass-screen treatment that most barndo builders default to. The retractable systems disappear when the bug season ends, the porch reads as a covered patio in shoulder seasons, and the screens are easy to replace in five years when squirrels and storms have done their work. Floor finish should be either a porcelain tile rated for outdoor freeze-thaw cycles (Daltile Emerson Wood or similar) or a stained concrete slab; do not specify pressure-treated decking for a screened porch in the Northeast — the joint shrinkage in winter is too aggressive.

Master Suite, Secondary Bedroom, and the Upper-Level Question

The master suite occupies the northwest corner — an 11.5-by-13 bedroom (roughly 150 sq ft) paired with an 11.5-by-7.5 walk-in closet (roughly 86 sq ft). That closet is the surprise — it's larger than the bedrooms in most apartments and provides genuine wardrobe and storage capacity for a couple. The bedroom itself is competent for a king bed with two nightstands and a small bench at the foot, but it isn't a sitting-room-master in the McMansion sense. Hudson Valley clients who want both a king bed and a reading chair should add 24 inches to one wall as a plan modification before construction — it's a $2,800–$4,500 modification at framing that's impossible to retrofit later without ripping out the wall.

The 10-by-11 secondary bedroom in the southeast corner is compact. It fits a queen bed with two narrow nightstands or a full bed with a small desk, but it isn't a guest-room-plus-office configuration. For a daily-occupied bedroom (a child, a teenager, an aging parent), it works. For dual-purpose flex space, it doesn't. Consider whether the plan's secondary-bedroom program matches your household — and if not, whether the upper level can take on the dual-purpose role instead.

The upper level is the question mark. Architectural Designs lists the plan at 1,039 sq ft heated total, 3 beds, 2.5 baths — which forces the upper level to carry at least the third bedroom plus a full bath and a half bath, on whatever floor area remains after the two-story vault is subtracted from the upper deck. Realistically, this means the upper level is a tight loft with a single bedroom, a full bath, and a half bath, accessed by a stair from the great room and overlooking the vaulted core. Before committing to the plan, request the second-floor PDF from Architectural Designs and verify that the upper bedroom is dimensioned for your household — if it's under 100 sq ft, treat it as guest-only, not as a long-term occupant's bedroom.

The Rear Bay — Workshop, Not Garage

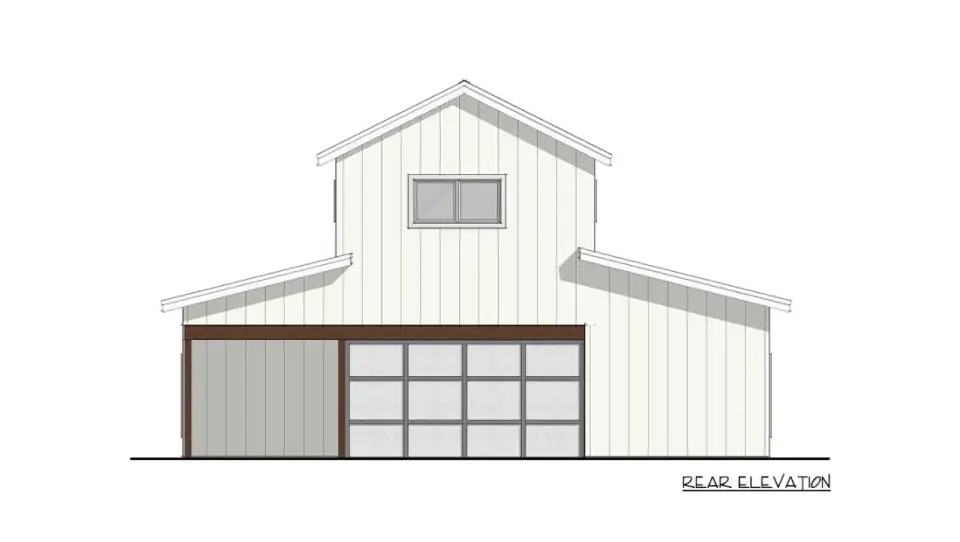

The rear elevation shows a large overhead door that reads visually as a garage door. The Architectural Designs listing is unambiguous on this point: the plan's garage-car count is zero. What that door actually fronts is a workshop or equipment bay — the typical barndo program where the owner stores a riding mower, lawn tractor, woodshop, kayaks, or whatever the rural-lot lifestyle requires. It is not a heated, finished, code-compliant car garage. Treating it as one is the most common mistake first-time barndo buyers make, and the realization usually arrives at the cost-to-build stage when the conditioned-garage line item is missing from the plan's structural drawings.

If you need an actual car garage, this plan doesn't deliver one — and adding one is a meaningful plan modification. Two options I'd consider: extending the footprint by 24 feet on the long axis to add a single-car attached garage (roughly a $35,000–$55,000 modification including foundation, envelope, and plan-redrawing fees), or building a detached 24-by-24 garage on the site separately (roughly $55,000–$85,000 in 2026 Hudson Valley pricing, but visually freestanding and architecturally cleaner). For lots without snow-load concerns, a detached garage is the move I'd recommend; the barndo footprint stays clean, the garage gets its own utility connections, and resale reads better.

If you accept the plan as drawn and treat the rear bay as a workshop, specify the door as an insulated steel sectional door (Clopay Avante or Wayne Dalton 9605 in matte black), the slab as a 4-inch fiber-reinforced concrete with a sealed broom finish, and a sub-panel for 240V tools. That detail makes the workshop genuinely useful and reads to a future buyer as intentional shop space, not a half-finished garage.

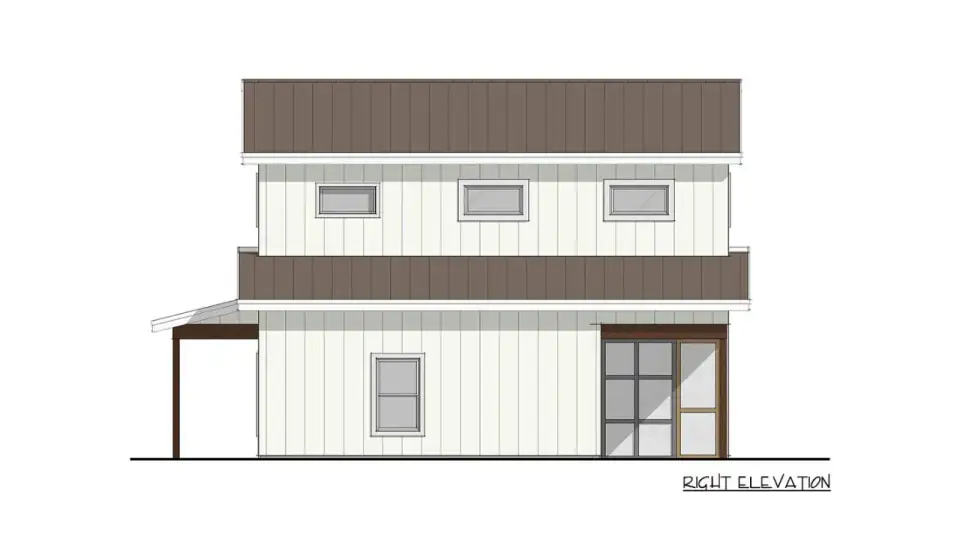

Exterior Massing and Material Read

The massing is a central two-story gable flanked by lower shed-roof wings — the classical-American barn proportion, scaled down to residential use. The central gable carries the two-story vault; the shed wings cap the master suite on one side and the kitchen-utility block on the other. This is the proportional move that distinguishes an architect-drawn barndo from a builder's box: the eye reads the building as a primary mass (the gable) with subordinate masses (the sheds), the way the eye reads a working agricultural barn. Plans that try to do the entire envelope as a single rectangular gable look like sheds; plans that break the mass too aggressively look like collage. This plan threads the middle.

Material palette as drawn: white or off-white vertical board-and-batten siding (specify LP SmartSide Engineered Wood BoardNBatten in 12-inch board widths for the most authentic agricultural read, or James Hardie Statement Collection if you want fiber-cement durability over wood-fiber engineering), a stone or cast-stone base water-table running roughly 24 inches above grade, a dark metal roof in either standing seam or batten-panel configuration (AEP Span ZipRib in matte black, or Sheffield Metals Snap-Lock 1.5"), and black aluminum-clad windows (Marvin Elevate Casement in Ebony, or Andersen 400 Series in Black). These four material decisions carry the agricultural-modern read; substituting any of them with a builder-grade equivalent (vinyl siding, asphalt shingles, white vinyl windows) collapses the plan's identity.

The shed-roof wings should pitch at 3:12 or 4:12, matching the working-barn vernacular. The central gable typically pitches at 8:12 or 10:12 — steeper for the proportional emphasis. The roof deck under the metal panels should be a full peel-and-stick ice-and-water shield (Grace Ice & Water Shield, or Carlisle WIP 300HT for the high-temperature roof deck under dark metal panels exposed to summer thermal cycling in the Hudson Valley). Cheap underlayment under a dark metal roof in a Northeast climate is the failure point that shows up at year 8.
